| Specifications | Range | UT105+ | UT107+ |
| DC voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+3) | |
| 600mV/6V/60V/600V/1000V | ±(0.5%+3) | ||
| AC voltage (V) | 4V/40V/400V/1000V | ±(0.8%+3) | |
| 6V/60V/600V/1000V | ±(0.8%+3) | ||
| AC current (A) | 4mA/40mA/400mA/10A (20A for 10s max) | ±(1.0%+8) | |
| 6mA/60mA/600mA/10A (20A for 10s max) | ±(1.0%+8) | ||
| DC current (A) | 4mA/40mA/400mA/10A (20A for 10s max) | ±(0.8%+8) | |
| 6mA/60mA/600mA/10A (20A for 10s max) | ±(0.8%+8) | ||
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(0.8%+3) | |
| 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+3) | ||
| Capacitance (F) | 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF | ±(3%+10) | |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+5） | ±(0.1%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(1.0%+3) | ±(1.0%+3) |
| Temperature (℉) | -40℉~1832℉ | ±(1.5%+5) | ±(1.5%+5) |
| VFC | 1000V | ±(2.0%+10) | ±(2.0%+10) |
| RPM | 2STR | ±(3.0%+5) | ±(3.0%+5) |
| 4STR | ±(3.0%+3) | ±(3.0%+3) | |
| Dwell angle | 1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°) | ±(3.0%+5) | ±(3.0%+5) |
| Pulse width | 999.9mS | ±(1.5%+10) | |
| Features | |||
| Display count | 4000 | 6000 | |
| Manual range | √ | √ | |
| Continuity/diode/transistor | √ | √ | |
| Duty cycle | √ | √ | |
| High voltage alarm | √ | √ | |
| High voltage overload alarm | √ | √ | |
| Large current alarm | √ | √ | |
| Low battery indication | ＜ Approximately 2.4V | √ | √ |
| Backlight | √ | √ | |
| Auto power off | Approximately 15 minutes | √ | √ |
| Data hold | √ | √ | |
| Max/Min/Relative mode | √ | √ | |
| VFC | √ | √ | |
| 12V battery test | √ | ||
| Safety rating | CAT II 1000V/CAT III 600V | ||
| General Characteristics | |||
| Power | AAA 1.5V x2 | ||
| Product color | Red+Gray | ||
| Product net weight | 348g (Including batteries) | ||
| Product size | 183 x 88 x 56mm | ||
| Standard accessories | English manual,test leads,batteries,temperature probe | ||
| Standard individual packing | Gift box,carrying bag | ||
| Standard quantity per carton | 20 pcs | ||
| Standard carton measurement | 420×320×300mm |
||

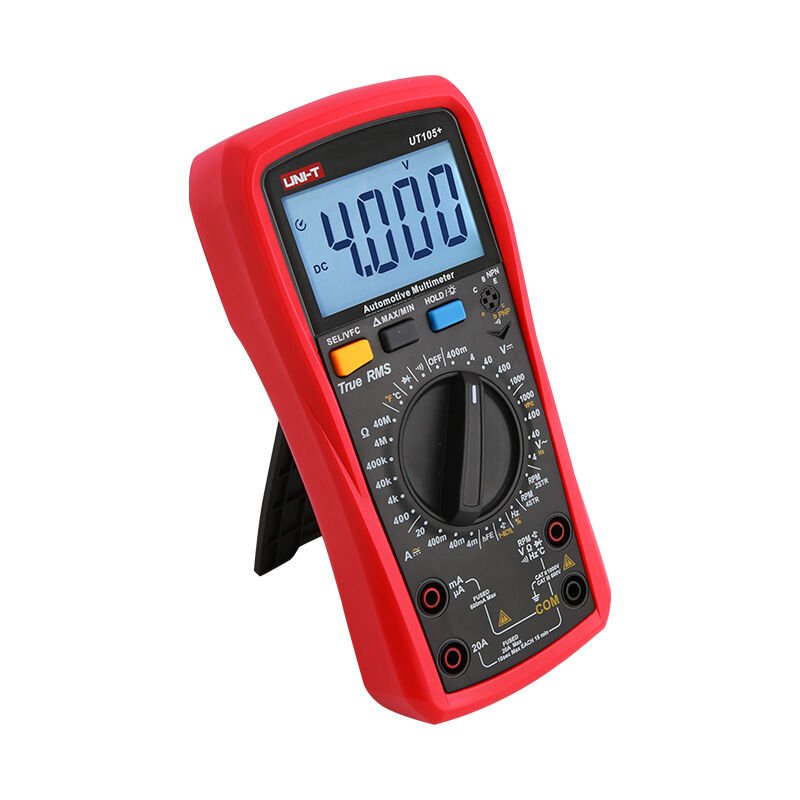

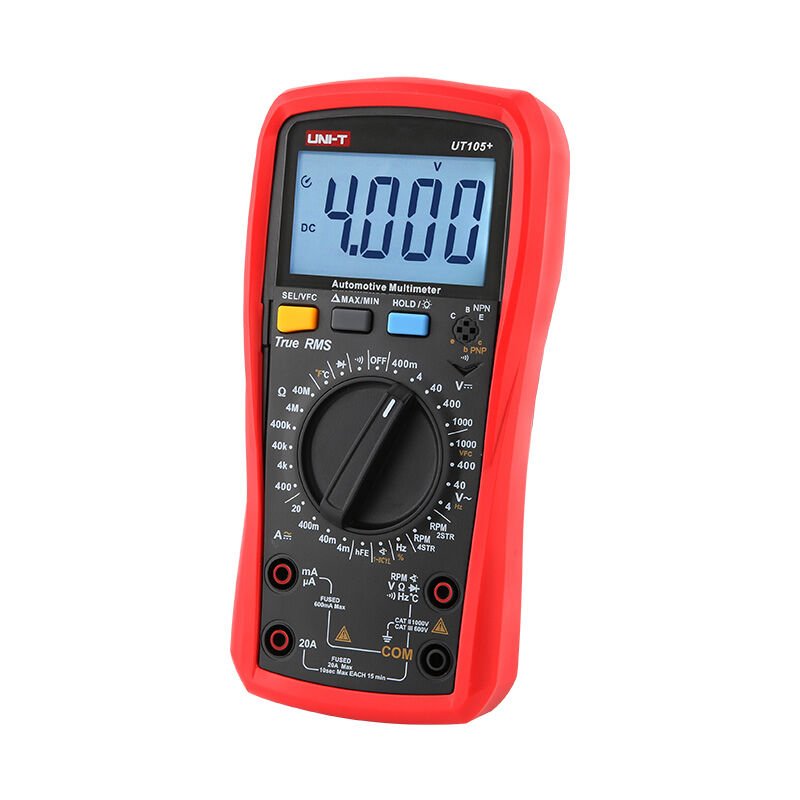

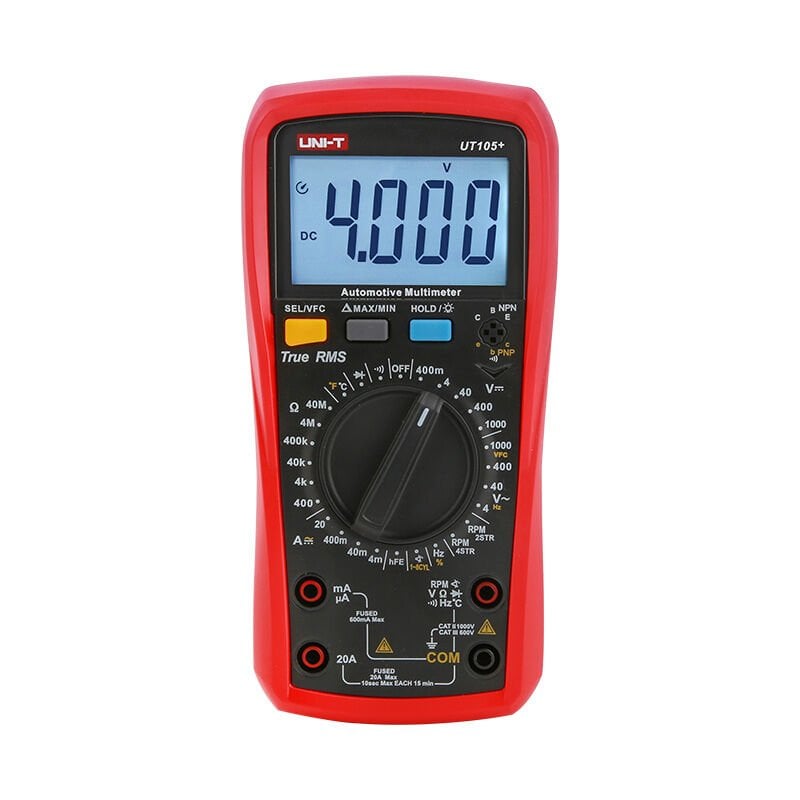

Unit UT105+ Dijital Otomotiv Multimetre
Kategori
Marka
Stok Kodu
UT105+
Fiyat
755,83 TL + KDV
*99,13 TL den başlayan taksitlerle!
907,00 TL
Unit UT105+ Dijital Otomotiv Multimetre
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
