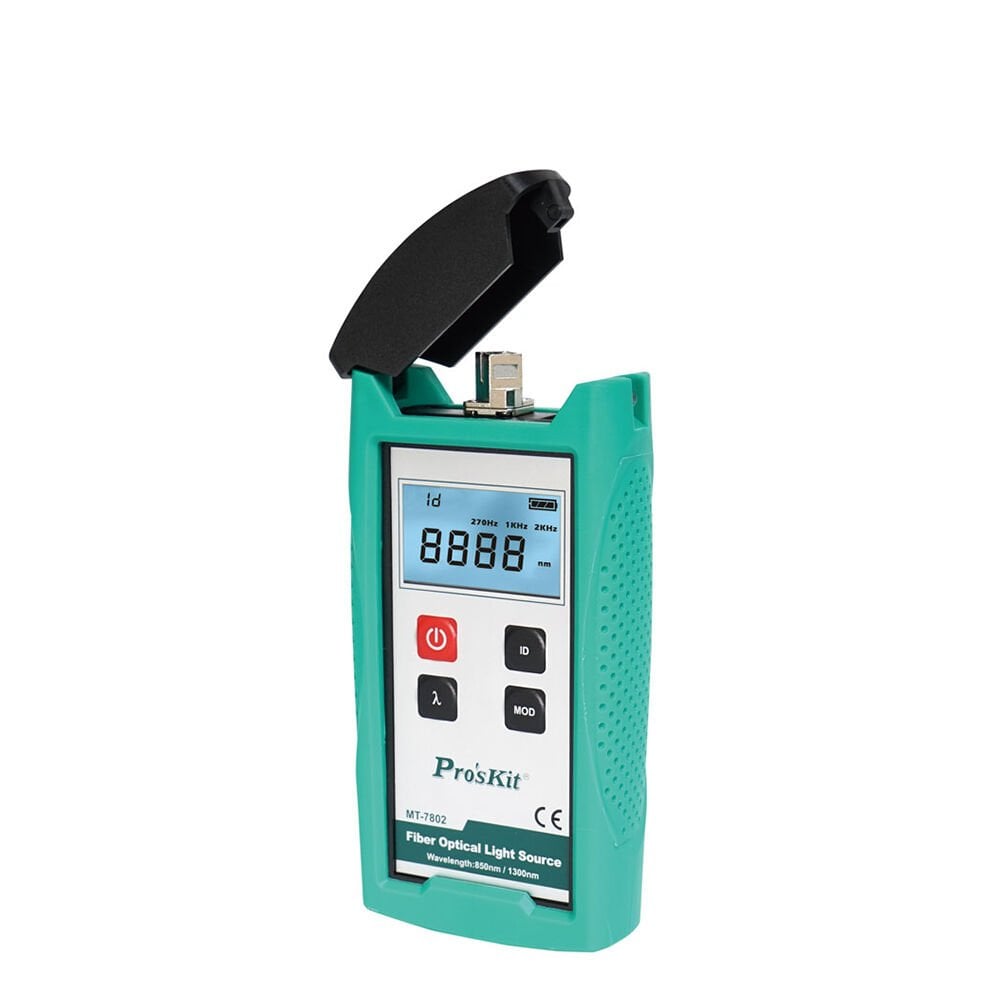

Proskit MT-7802 Fiber Optik Işık Kaynağı
Marka
Stok Kodu
MT-7802
Fiyat
11.625,00 TL + KDV
Havale
13.630,55 TL
(%2,29 havale indirimi)
*1.524,67 TL den başlayan taksitlerle!
13.950,00 TL
Proskit MT-7802 Fiber Optik Işık Kaynağı
5 range supplied : 850/1300/1310/1490/1550 (with multiple models)
Ideal for fiber optic network installation and maintenance
Proskit MT-7802 Fiber Optik Işık Kaynağı
Stability and Reliability Output
- Built-in optic isolator, larger and more stable compared to desktop source.
Full Range Supply
- MT-7801 provides single mode 1310/1550 wavelength light source
- MT-7802 provides multi mode 850/1300 wavelength light source
- MT-7803 provides single mode 1310/1490/1550 wavelength light source
Supports SC/PC
- Supports SC/PC connectors
LCD display with Backlight
- Easily reading and allowing work in dark area.
WAVE ID
- In WaveID mode, it will encode each wavelength with a unique WaveID code; output the same wavelength automatically to identify the wavelength. (Work with Pro’sKit MT-7601& MT-7603 power meter)
Selection of 3 Modulations, distinguish OPTIC fiber line
- 270Hz, 1KHz, 2KHz
Easy Operation
- Designed with single key to switch the wavelength, easy,
- flexible and convenient.
User friendly
- Power by Battery, more convenient.
- Comes with DC5V power jack allows charging the rechargeable b attery with. DC input (adaptor is not included) when using the rechargeable battery.
- Auto power off.

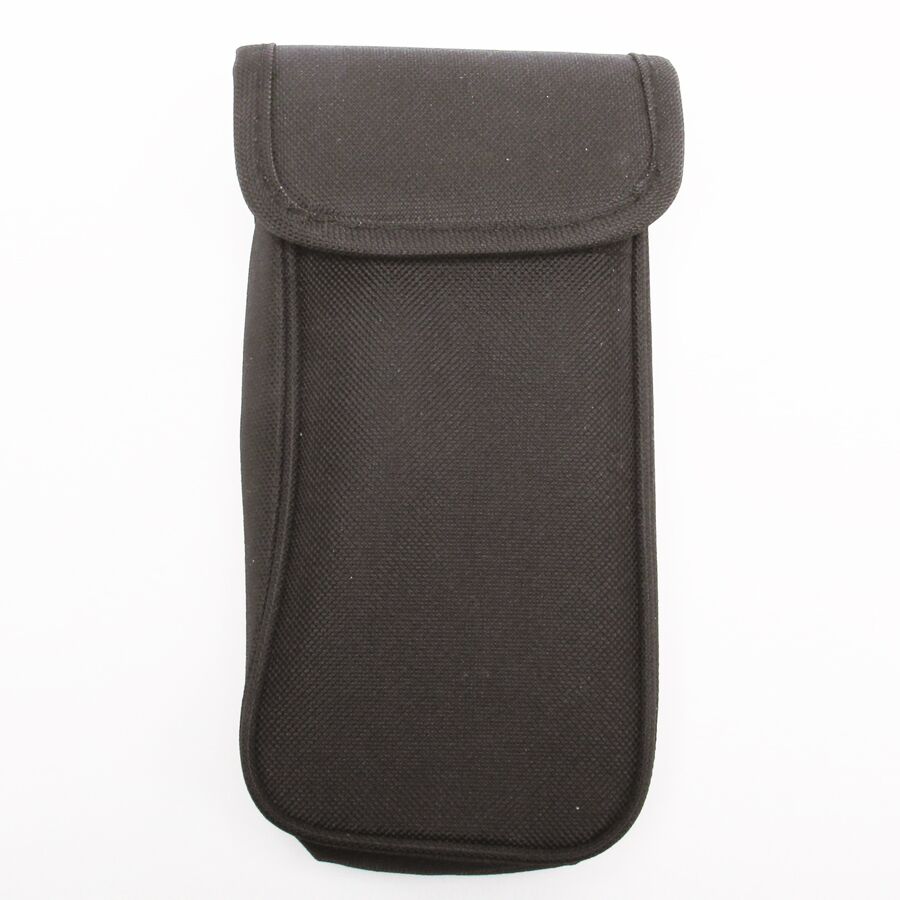

- Protective rubber boot with a soft protective case.
DC 5V
- Power jack
| Model no. | MT-7801 | MT-7802 | MT-7803 |
| Wavelength | 1310/1550nm±10nm | 850/1300nm±10nm | 1310/1490/1550nm±10nm |
| Power Stability | ±0.05dB / 1hr；±0.1dB / 8hrs | ||
| output Power | >-5dBm | >-10dBm | >-5dBm |
| OPTIC connector | SC/PC | ||
| Modulation | 270Hz, 1kHz,2kHz | ||
| Auto power off | 10 minutes (could be reset) | ||
| Battery Charge | Yes (when using rechargeable battery), by DC 5V power jack | ||
| Low battery indication | Yes | ||
| Storage temperature | -20~+70°C; <90%RH | ||
| Operating temperature | -10~+60°C; <90%RH | ||
| Power source | 2 x 1.5V AA batteries (not included) | ||
| Dimension | 165× 80 × 35mm | ||
| Weight | 280g | ||
| package | Color box | ||
