Proskit MT-7028 Network Kablo Test Cihazı Prob Kit
2.656,00 TL

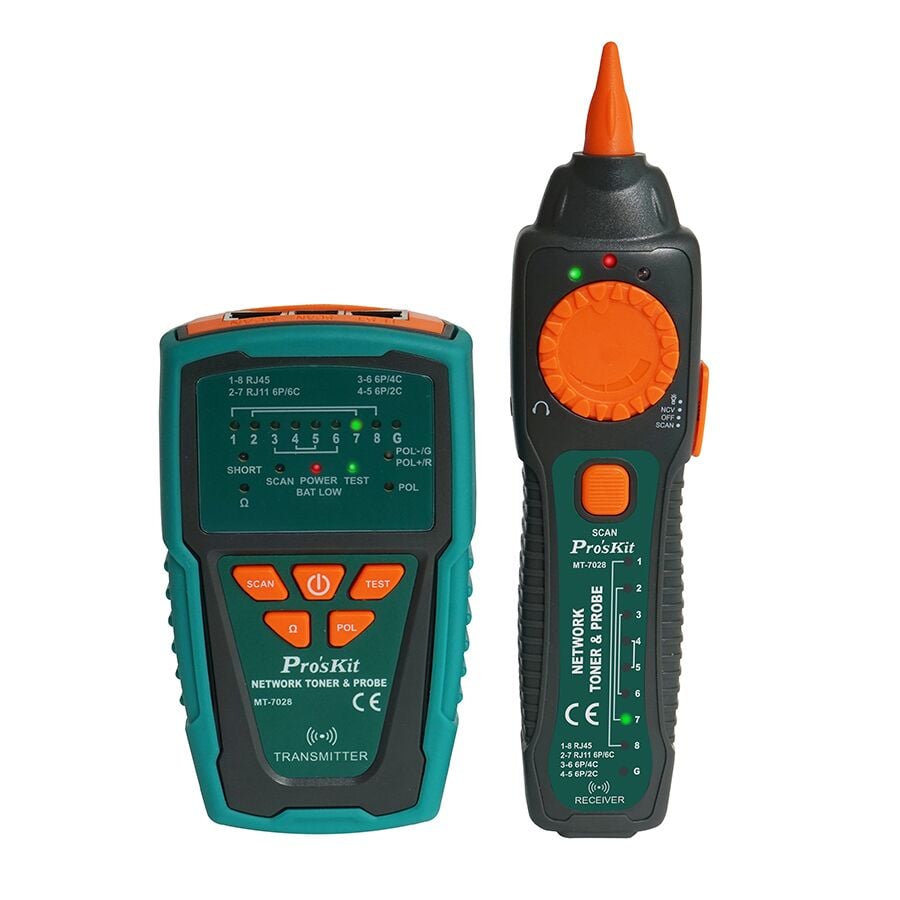

Proskit MT-7028 Network Kablo Test Cihazı Prob Kit
The MT-7028 lets you easily locate and verify the cable status and troubleshoot wiring for continuity, shorts, opens and crossover on RJ45 Lan cable Cat 5、5e、6、7 (UTP/STP)、RJ11/12 Telephone cable Cat. 3 (2/4/6 pin) & normal solid/Stranded wire by alligator clips patch cord. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.
| MT-7028 Transmitter specifications | |
| Tone frequency | 1kHz |
| Max. distance of transmission &Cable map | ≧3km &300m |
| Tone mode | Hi/Low two-note tone |
| Compatible connectors | RJ45(8 pin)/RJ11(6 pin) compatible connectors for RJ45(8 pin)、RJ11/12(6P/2C/4C/6C) cable map and RJ45 tone、RJ-11(6 pin) connectors for RJ11/12(6P/2C/4C/6C) tone |
| Cable types tested | RJ45 Lan cable Cat 5、5e、6、7 (UTP/STP)、RJ11/12 Telephone cable (6P/2C/4C/6C) |
| Continuity test | 1 LED (≦300Ω), Coaxial cable & normal solid/Stranded wire by alligator clips patch cord. |
| Cable map & Shielded indication | 8 LEDs& 1LED , Fast/Slow dual speed |
| Phone line polarity indication | 1 Dual color LED |
| Other function Live telecommunication equipment test and router test | Live telecommunication equipment test and router test, Voltage protection AC 60V or DC 48V,Auto power off, Low battery display |
| MT-7028 Receiver specifications | |
| Frequency | 1kHz |
| Compatible connectors | RJ45(8 pin)/RJ11(6 pin) |
| Signal status indication | 1 LED & Buzzer, building ear jack |
| Cable map & Shielded indication | 8 LEDs & 1LED |
| NCV indication | 1 LED (AC90~1000V) |
| LED illumination | 1 LED |
| Battery type | DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pcs) |
| Dimension (L×W×D) | 198×45×33 mm |

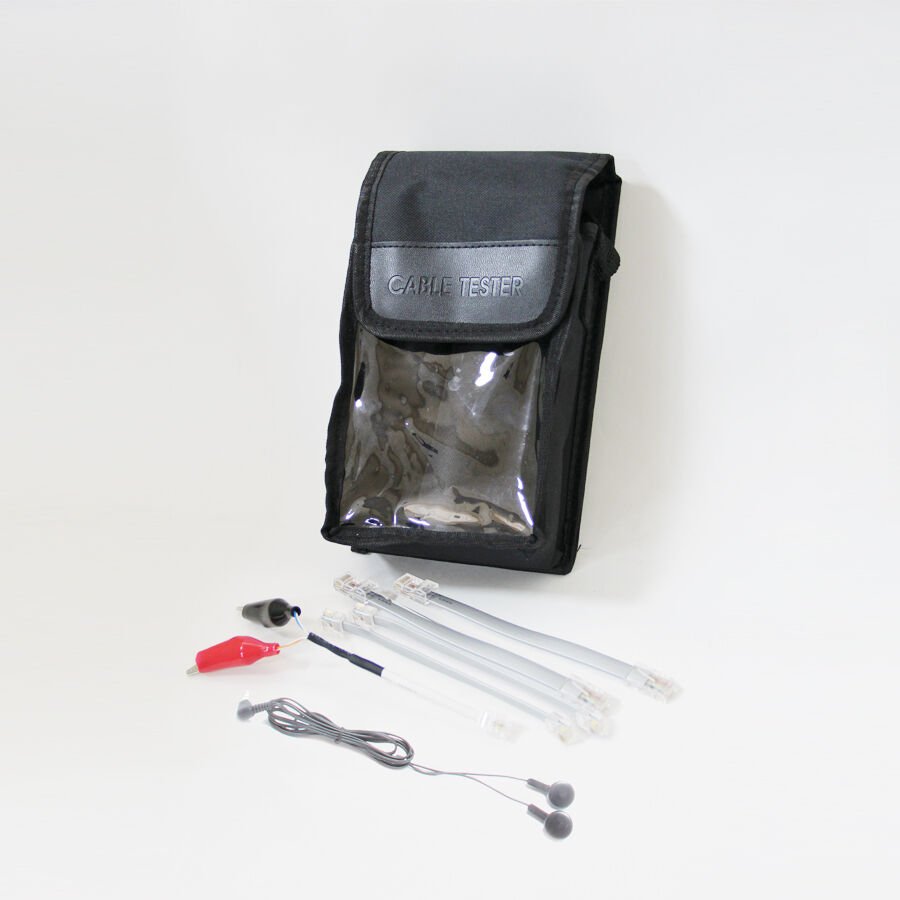

| Accessories | RJ45 cable patch cord、RJ11 cable patch cord、Alligator clips patch cord、Earphone、pounch bag |
